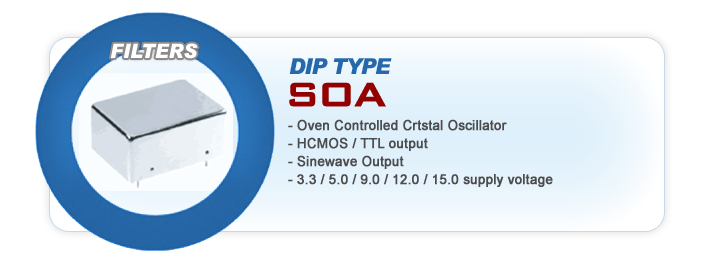

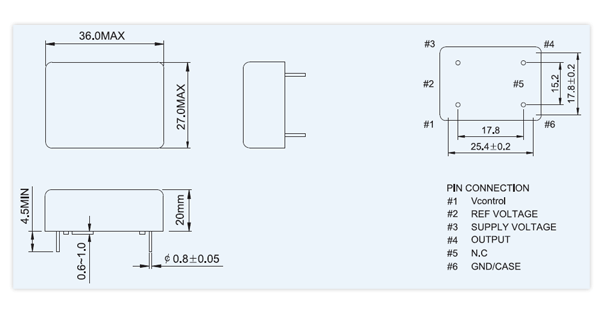

| - ELECTRICAL SPECIFICATIONS - |
| Frequency Range |
5.000 to 33.000MHz |
| Crystal Cut |
SC CUT |
| Frequency / Stability |
Per customer requirements, see how - to - oder instruction
Typical :
±100ppb Typical : ±0.2ppm
Best : ±10ppb |
| Long Term Stability (Aging) |
±1ppb max. per day.
±100ppb max. per day. |
| Output Waveform |
Per customer requirements, see how - to - oder instruction
HCMOS, TTL, Sinewave +3dBm min.
(Available up to +7dBm) |
Load |
Three Gate for logic output 50ohm for sinewave output
|
Frequency Stavility
vs. Load Variation |
±1 to 20ppb max. for ±5% Variation |
| Supply Voltage |
Per customer requirements, see how - to - oder instruction |
| Supply Power (at 25℃) |
Typical : 6.0W for warm-up 1.0W max. at steadu state |
| Warm up Time |
Typical : To within ±0.1ppm from final frequency in 4 min. 25℃ |
Frequency Pulling Range
(by external voltage) |
Typical : ±0.1ppm to 2.0ppm mon. |
| Control Voltage Range |
+0.5 to Vcc-0.5V |
| Slope |
Positive |
| Linearity |
±10% max. |
| Regerence Voltage |
Per customer requirements |
| Phase Noise |
Typical : -100dBc at 10Hz offset
-120dBc at 10Hz offset
-140dBc at 10Hz offset
-150dBc at 10Hz offset
Available in different performence |
| Short term Stavility |
5 x 10-¹¹ (Allan variance at 1sec.) |
