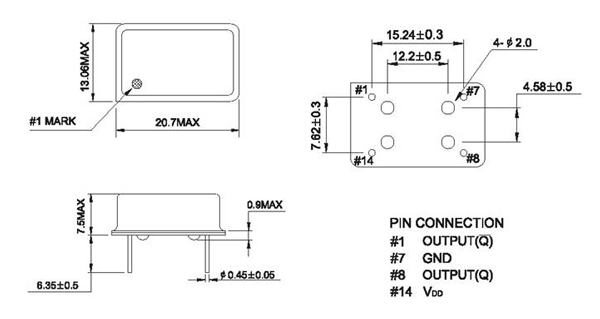

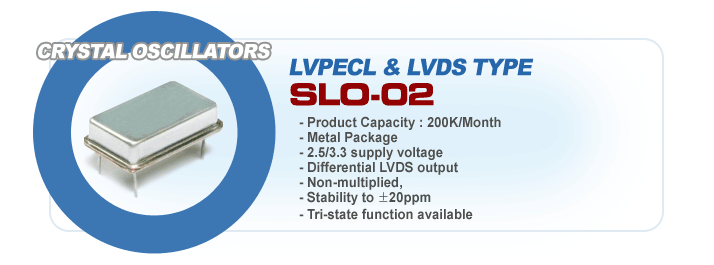

| - ELECTRICAL SPECIFICATIONS - |
| Frequency Range |
9.500 to 200.000MHz |
| Operating Temperature Range |
0 to 70℃(STD) or -40 to 85℃ |
| Storage Temperature Range |
-55 to +125 ℃ |
| Frequency Tolerance/Stability |
Inclusive of Operating
Temperature Range
Supply Voltage, and Load |
±100ppm, ±50ppm or
±25ppm, ±20ppm |
| Supply Voltage(Vdd) |
2.5Vdc ±5%, 3.3Vdc ±5% |
| Current Consumption |
45mA Typ., 66mA(3.3V) max |
Output Voltage Logic Low |
1.43V Typ., 1.6max |
Output Voltage Logic High |
1.1V Typ., 1.9min |
| Rise/Fall Time |
300ps Typ., 700ps max.(20~80% Waveform) |
| Output Differential Voltage |
247~454mV, 350mV |
| TypOffset Voltage |
1.125~1.375mV, 1.2V |
| TypDuty Cycle |
50 ±5% (Optional) |
| Output Load |
100Ω Differential Load |
| Pin 1 Tri-state Input Voltage |
No Connection |
Enable Output |
| Vih : ≥ 0.7Vdc |
Enable Output |
| Vil : ≤ 0.3Vdc |
Disable Output |
| |
High Impedance |
| Aging (at 25℃) |
±3ppm/year max. |
| Start-up Time |
10ms max. |
| Phase Jitter(12kHz~20MHz) |
1ps max. |
