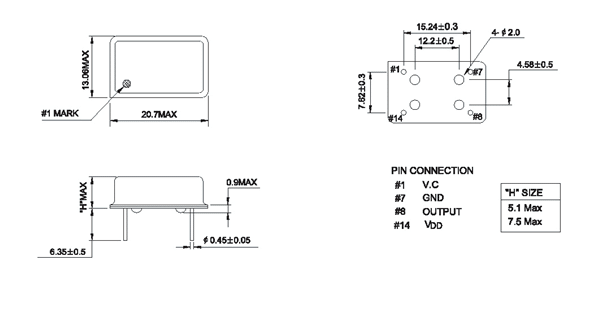

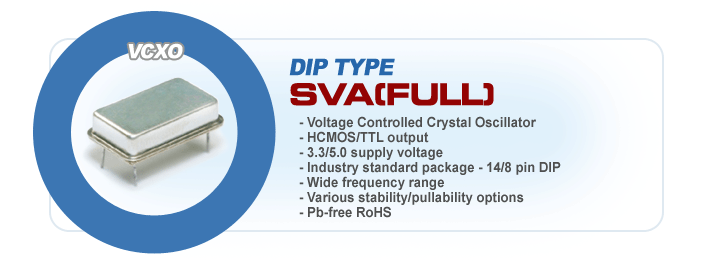

| - ELECTRICAL SPECIFICATIONS - |
| Frequency Range |
1.000 to 200.000MHz |
| Operating Temperature Range |
0 to 70℃ or -40 to 85℃ |
| Storage Temperature Range |
-40 to +85 ℃ |
| Aging(at 25℃) |
±3.0ppm / year Max. |
| Load Drive Capability |
10 TTL Load or 15pF HCMOS Load (STD) |
| Start-up Time |
10ms max. |
| Frequency Deviation |
2.5Vdc ±2.0Vdc |
±10, ±30, ±50, ±100, ±150ppm min. |
| Pin 1 Control Voltage
|
2.5Vdc ±2.5Vdc
1.65Vdc ±1.65Vdc
(or ±1.5Vdc) |
±10, ±30, ±50, ±100, ±150, ±200ppm min.
±10, ±30, ±50, ±100, ±150ppm min.
±300ppm min.(Optional) |
| Linearity |
±20, ±15, ±10, ±5%(Optional) |
| Supply Voltage |
|
5.0Vdc ±5% 3.3Vdc ±5% |
| Input Current |
1.000 to 20.000MHz
20.001 to 40.000MHz
40.001 to 80.000MHz
80.001 to 125.000MHz
125.000 to 200.000MHz |
26mA max 17mA max
40mA max 25mA max
60mA max 35mA max
70mA max 45mA max
80mA max 65mA max |
| Frequency Stability |
±50, ±25, ±20, ±10ppm (See Table3) |
Output Voltage Logic High(Voh) |
w/TTL Load 2.4V Min,
w/HCMOS Load
90% of Vdd min. |
Output Voltage Logic Low(Vol) |
w/TTL Load 0.4V Min,
w/HCMOS Load
10% of Vdd max. |
| Duty Cycle |
at 50% of Waveform w/HCMOS
Load or 1.4Vdc w/TTL Load |
50 ±10%(STD)
50 ±5%(Optional) |
| Rise / Fall time |
5ns max |
| Period Jitter : pk-pk |
100ps max |
| Period Jitter : One Sigma |
25ps max |
