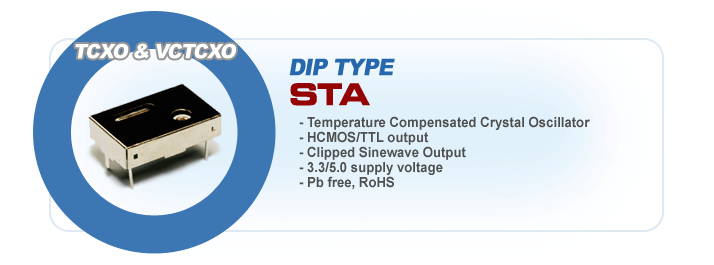

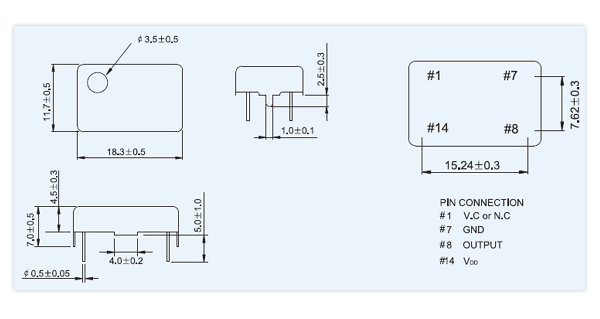

| - ELECTRICAL SPECIFICATIONS - |
| |
HCMOS / TTL |
CLIPPED SINEWAVE |
| Frequency Range |
1.200 to 200.000MHz |
9.600 to 50.000MHz |
| Operating Temperature Range |
0℃ ~ 50℃ to -40 to +85℃ |
| Storage Temperature Range |
-55℃ to +125℃ |
Frequency Tolerance / Stability
Vs. operating Temperature Range
Vs. Input Voltage(±5%)
Vs. Load(±10%)
Vs. Aging |
See Table 4
±0.3ppm max.
±0.3ppm max.
±1.0ppm max. |
Output Level
|
TTL : 2.4Vdc min. 0.4Vdc max
HCMOS : 90% of Vdd min1.
|
0.8Vp-p min.(Vdd : 3.3Vdc)
0Vp-p min.(Vdd : 5.0Vdc) |
| 10% of Vdd max. |
| Supply Voltage(Vdd) |
3.3Vdc ±5% 5.0Vdc ±5% |
| Control Voltage |
1.65Vdc ± 1.65Vdc 2.5Vdc ±2.0Vdc
Positive transfer Characteristic |
| Input Current |
20mA to 60mA |
2mA to 5mA |
Internal Trim(top of can) |
±3ppm min. |
| Rise / Fall Time |
4ns max. |
| Duty Cycle |
40 / 60, 45 / 55 |
| Frequency Deviation |
±5ppm or ±10ppm minimum Over Control Voltage |
