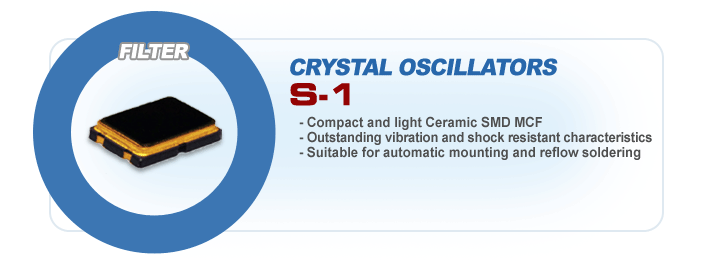

| - ELECTRICAL SPECIFICATIONS - |
| Model |
Nominal
Frequecy
(MHz) |
Pass
Bandwidth
(dB) (kHz) |
Stop
Bandwidth
(dB) (kHz) |
Ripple
(dB) |
Insertion
Loss
(dB) |
Guaranteed
Attenuation
(dB) |
Terminating
Impedance
(㏀//pf) |
Package
|
| S17M15A |
17.900 |
3 ±7.5 |
17 25 |
±0.75 |
2.0 |
65 |
1.8//-1.9 |
S-1 |
| S21M7.5A |
21.400 |
3 ±3.75 |
18 15 |
±1.0 |
2.0 |
65 |
0.87//6.0 |
S-1 |
| S21M15A |
21.400 |
3 ±7.50 |
18 25 |
±0.5 |
1.5 |
65 |
1.5//2.5 |
S-1 |
| S21.7M7.5A |
21.700 |
3 ±3.75 |
18 25 |
±1.0 |
2.0 |
65 |
0.87//6.0 |
S-1 |
| S21.7M15A |
21.700 |
3 ±7.50 |
18 25 |
±0.5 |
1.5 |
65 |
1.5//2.5 |
S-1 |
| S45M15A |
45.000 |
3 ±7.50 |
15 25 |
±1.0 |
2.0 |
60 |
0.56//6.0 |
S-1 |
| S45M30A |
45.000 |
3 ±15 |
15 50 |
±1.0 |
3.0 |
65 |
1.2//1.5 |
S-1 |
|
|
|
|
|
|

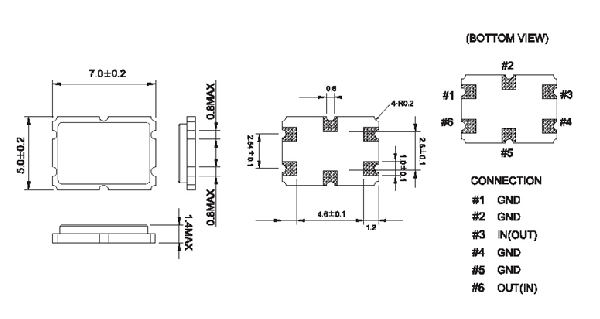

| - MECHANICAL DIMENSIONS (mm) - |
 |
|
| |

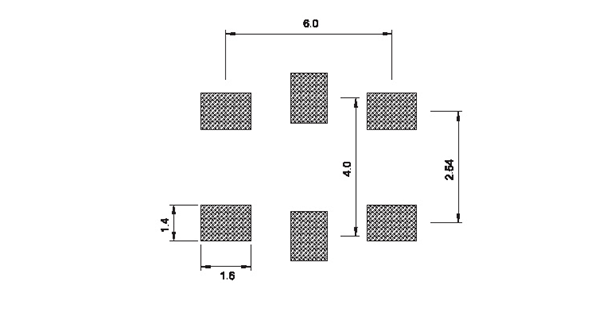

| - LAND PATTERN (mm) - |
 |
|
|
|
|
|
